Hydro-Gear ZW-GKEE-6L7B-36XX ZT-3400 Integrated Transaxle
$1,228.99
Skip to product information

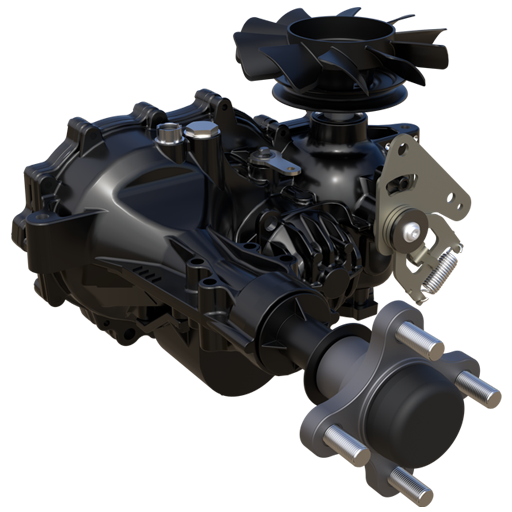

Hydro-Gear ZW-GKEE-6L7B-36XX ZT-3400 Integrated Transaxle
$1,228.99
The ZT-3400 is built for demanding zero-turn drive work, but the complete build code still determines fitment. This integrated transaxle is ZW-GKEE-6L7B-36XX.
Family specifications describe the platform; application details such as shafts, controls, brake, orientation, and mounting come from the full code.
Why this matters
- Integrated pump-and-motor construction creates a compact, serviceable drive package.
- Exact-code matching protects steering response and installation alignment.
- Official product and service documents support maintenance planning.
Family specifications
| Pump displacement | 12 cc/rev |
|---|---|
| Motor displacement | 16 cc/rev |
| Input speed | 1,800–3,600 rpm |
| Output torque | Up to 500 lb-ft |
| Speed | Up to 10 mph |
| Gross vehicle weight | Up to 1,600 lb |
| Axle shaft diameter | 1.125 in |
| Approximate weight | 34.5 lb |
| Exact configuration | ZW-GKEE-6L7B-36XX |
Official Hydro-Gear resources
Manual note: Use the mower manufacturer’s instructions for mower-specific removal and installation.
Ordering, lead time, returns, and warranty
- Match the complete identification number on the original component and verify the equipment model and serial number.
- Many HydroDrives-supplied units are built to order and may require approximately 10–15 business days before shipment.
- Approved returns may incur a 20% restocking fee; original and return shipping charges are nonrefundable.
- Build-to-order, installed, used, damaged, or fluid-filled components may be ineligible for return.
- Applicable warranty coverage may require authorized-service-center installation. Retain service records.
Orders may ship directly from a U.S. partner warehouse. Availability and timing are subject to supplier confirmation.
