6020 Mower Blade for Dixie Chopper

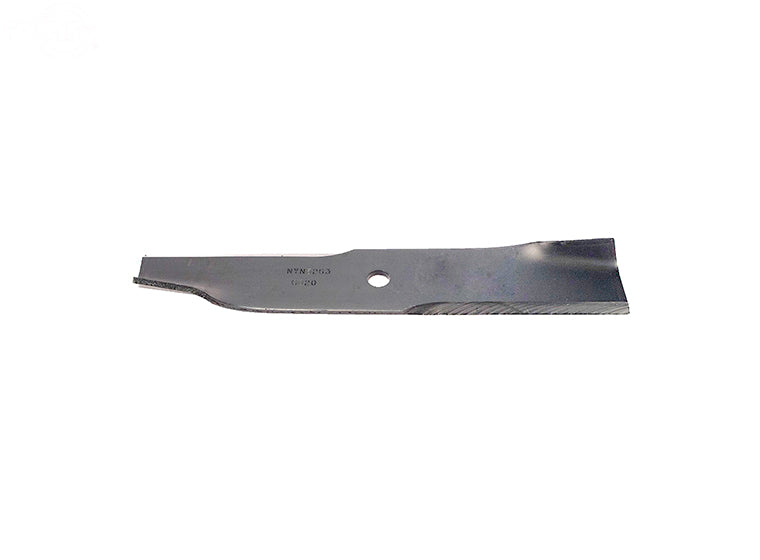

6020 Mower Blade for Dixie Chopper is a standard-lift, clockwise-cut replacement blade for verified Dixie Chopper, Bad Boy, and Gravely applications. Match the complete part number, 5/8-inch mounting hole, dimensions, and deck configuration before ordering.
Verified Specifications
| Blade length | 14-1/2" |
|---|---|
| Blade width | 2-1/2" |
| Thickness | 0.204" |
| Mounting hole | 5/8" round |
| Cut direction | Clockwise (right) |
Verified Replacement References
Replaces Bad Boy 038-4226-00 and 038-4221-00; Dixie Chopper 63227-H, 30227-42, and 63227-N; and Gravely 02961600.
Fitment Guidance
Verified for applicable 42-inch Dixie Chopper decks that require three blades. Confirm the exact mower model, serial range, deck size, mounting pattern, and required deck quantity before ordering.
What One Purchase Includes
One 6020 mower blade. The three-blade statement above is a deck-level service requirement, not the quantity included with one purchase.
Installation and Service
Follow the equipment manufacturer's service procedure. Stop the engine, remove the key, disconnect the spark-plug lead, secure the blade, wear cut-resistant gloves, install in the correct orientation, and torque the mounting hardware to the equipment manufacturer's specification.
