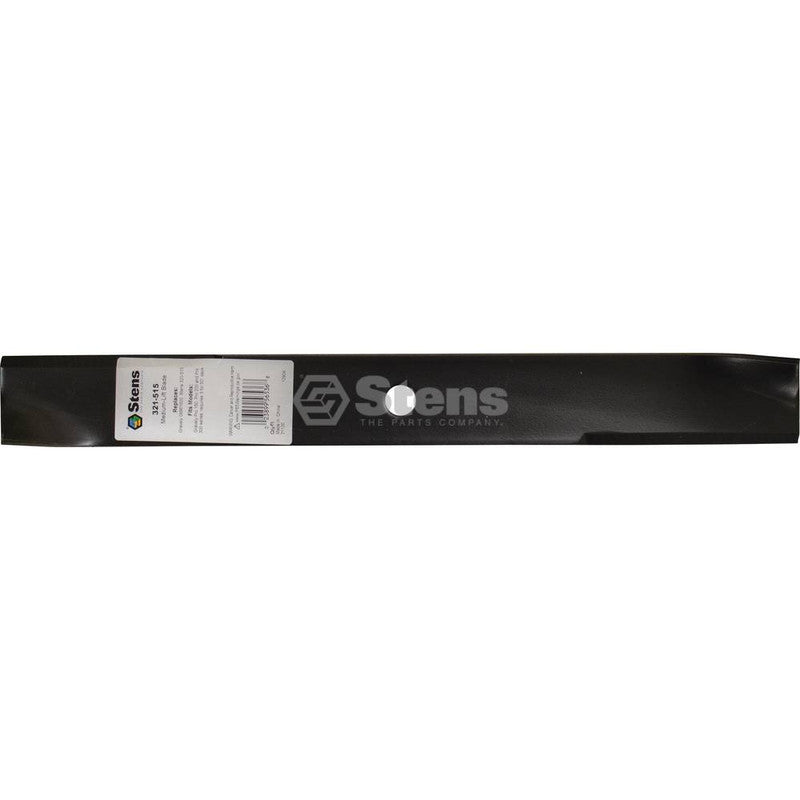

321-515 Medium-Lift Blade for Dixon
321-515 Medium-Lift Blade for Dixon
321-515 Medium-Lift Blade for Dixon is a 17-inch replacement blade for the supplier-listed Dixon and Gravely applications. Match the complete part number, mounting pattern, dimensions, and equipment configuration before ordering.
Verified Supplier Specifications
| Blade length | 17" |
|---|---|
| Blade width | 2" |
| Thickness | 0.203" |
| Center hole | 5/8" |
| Lift profile | Medium lift |
Replacement and Cross-Reference Numbers
Ariens 08861600; Dixon 539126276, 539129741, 8689, 9229, 9264; Gravely 011234, 046998, 08779200, 08861600, 08861651, 08899300, 08899600, 09082400, 09246700, 11234, 11234P1, 21285000, 21285051, 46998, 8779200, 8779251, 8861651.
Verified Fitment Guidance
Dixon 501, 502, 503, and 5000 models from 1996 and earlier; two blades are required for a 32-inch deck and three for a 50-inch deck. Also fits supplier-listed Gravely Pro 150, Pro 200, and Pro 300 series applications; three blades are required for a 50-inch deck.
What One Purchase Includes
One 321-515 medium-lift mower blade. Deck-level blade requirements are fitment guidance and do not change the included quantity.
Fitment Safeguard
Verify the complete replacement number, mower model, serial range, deck size, blade dimensions, hole pattern, orientation, and required deck quantity before ordering.
Installation
Stop the engine, remove the key, disconnect the spark-plug lead, secure the blade, and wear cut-resistant gloves. Install in the correct orientation and torque the hardware to the equipment manufacturer's specification.
